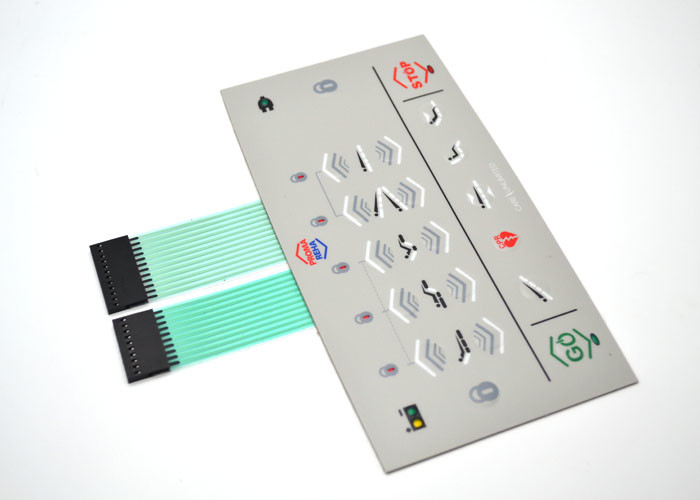

Embossed tactile LED membrane switch / ZS-133 / application for
medical instruments and with two male connectors
Electrical Performances
| Wire Resistance | 0.5mm width,<1Ω/cm | Rated Current | 25-100mA,0-30V DC |
| Insulation Resistance | >100MΩ 250V DC | Working Voltage | <50V DC |
| Non-tactile Switch | 0.1-0.4mm | Tactile Switch | 0.4-1.0mm |
| Working Life | Working Life | Working Temperature | -40℃ ~ 70℃ |
| Working Humidity | 40℃,98%RH No influence | Substrate Voltage | 1500V DC |
| Feedback Time | 10ms | Tail Folding | R>1,180
|
The main properties of custom design electronic membrane switch
1. PC /PET as overlay (control panel)
2. Flat keys or tactile type
3. Embossed button with good tactile feel
4. Pre-assemble with or without metal domes
5. Water-resistant, dust-proof, gas-proof and scratch-resistant
6. Long life cycle.
Our Best Service:Membrane switch
(1) Custom design expertise
(2) Single source manufacturing
(3) Assembly of surface mount components/circuit boards/backplates
(4) Multi-tasking switch pattern designs
(5) Custom molded boxes, bezels and frames with switch installation
(6) Precise color matching and repeatability
(7) Water resistant designs
(8) Fiber optic back-lighting
(9) 100% function testing of all circuits in-house
Company Introduction
Over 13 Years in the Membrane Switch Industry,Founded in 2002, Nanjing Zhongshan
Membrane Switch is a professional membrane switch manufacturer in China. Our professional
operation can ensure you of quality products supported by mechanical, electronic and control
automation. Based on our good abilities in technology and production workmanship, our
products are strictly checked by our quality supervision department. For your added
assurance, our plants are ISO 9001:2000-certified and our products are compliant with the
RoHS Directive..
“Our 3,000sqm factory houses three production lines furnished with advanced equipment to
manufacture up to 6 million pieces monthly. We are serving customers in Asia, the US,
Europe, Australia and other areas worldwide.
Packing and Delivery
