Round Shaped Metal Dome Membrane Switch , Membrane Keypad Switch Waterproof

Name: Round Shaped Metal Dome Membrane Switch Membrane Keypad Switch Waterproof
Brand: Zhongshan Membrane Switch
Price: 1 USD

Buy cheap Round Shaped Metal Dome Membrane Switch , Membrane Keypad Switch Waterproof product

Brand Name : Zhongshan Membrane Switch

Model Number : ZS-18

Certification : RoHS,ISO9001:2000

Place of Origin : Jiangsu, China (Mainland)

MOQ : 100pieces

Price : negotiation

Payment Terms : 30% deposit the 70% balance after shipment, or full payment after air transpotation

Supply Ability : 50000pieces per week

Delivery Time : within 7 days after payment

Packaging Details : Paper carton( outer) and plastic bubble bag (inner).Or per your needs.Special requirement accepted.

Craft : Screen Printing

Max Voltage : 35V

Connector width : 2.54mm

Feature : water proof

material : PET / PC

color : red black white yellow blue

Contact Now

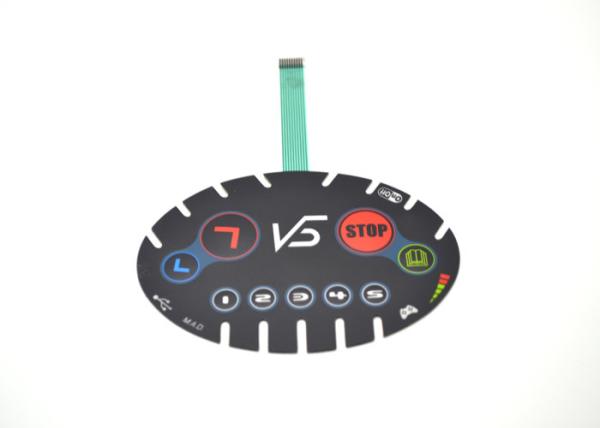

Round shape with metal dome tactile Membrane switch / ZS-18 /

printing 5 colors on the top overlay

Specification

op Adhesive	PET Double-sided Tape		0.10/.125mm
	Paper Double-sided Tape		0.10mm
	Transfer Tape		0.06/.12mm
Retainer	PET	Glossy	0.125mm
Spacer	PET Double-sided Tape		0.225/.275mm
Circuit Layer	PET	Glossy	0.125mm
Rear Adhesive	Paper Double-sided Tape		0.10mm
	Transfer Tape		0.06/.12mm
Connector	Pin		2.54mm Metal,Male/Female
Connector	Housing		Female,2.54mm
Conductive Layer	Silver Paste		Acheson ELECTRODA 820B
	Carbon Paste		Acheson ELECTRODA 423SS
	Insulation Ink		Acheson ELECTRODA 452SS

Electrical Performances

Wire Resistance	0.5mm width,<1Ω/cm	Rated Current	25-100mA,0-30V DC
Insulation Resistance	>100MΩ 250V DC	Working Voltage	<50V DC
Non-tactile Switch	0.1-0.4mm	Tactile Switch	0.4-1.0mm
Working Life	Working Life	Working Temperature	-40℃ ~ 70℃
Working Humidity	40℃,98%RH No influence	Substrate Voltage	1500V DC
Feedback Time	10ms	Tail Folding	R>1,180

Advantage

Membrane keyboard switch has the advantage of the whole flat, thin shape, quality, small,

dust-proof, good, good water resistance, is a semi-enclosed structure. In addition, the panel

design, and great freedom of choice of colors. Positive range of applications of desktop

computers, copiers, fax machines, toys, square computer, word processor and other areas of

expansion.

Round Shaped Metal Dome Membrane Switch , Membrane Keypad Switch Waterproof p

Packaging & Delivery

packaging details: inside,shockproof package, PE bag

outside,thickened carton, water-proof

delivery details: express,2-4 working days

air freight,5-7 working days

sea freight,25 working days

Round Shaped Metal Dome Membrane Switch , Membrane Keypad Switch Waterproof
