PET Material Embossed Tactile Metal Dome Membrane Switch Anti - Corrosion

Nanjing Zhongshan Membrane Switch Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

PET Material Embossed Tactile Metal Dome Membrane Switch Anti - Corrosion

  • 1
  • 2
  • 3

Brand Name : Zhongshan

Model Number : ZS-115

Certification : ROHSISO9001,2000

Place of Origin : jiangsu(China mainland)

MOQ : 100 pieces

Price : negotiation

Payment Terms : 30% deposit, the 70% balance after shipment or full payment before air transportaion

Supply Ability : 50000 pieces per week

Delivery Time : within one week after receiving order payment

Packaging Details : Seal plastic bags with carton boxes or due to customer detail requirements

material : PET

window : clear display window

thickness : 0.2mm

connector : 3.7mm male connector tail

brand name : Zhongshan

current contact : 2-24V

Contact Now

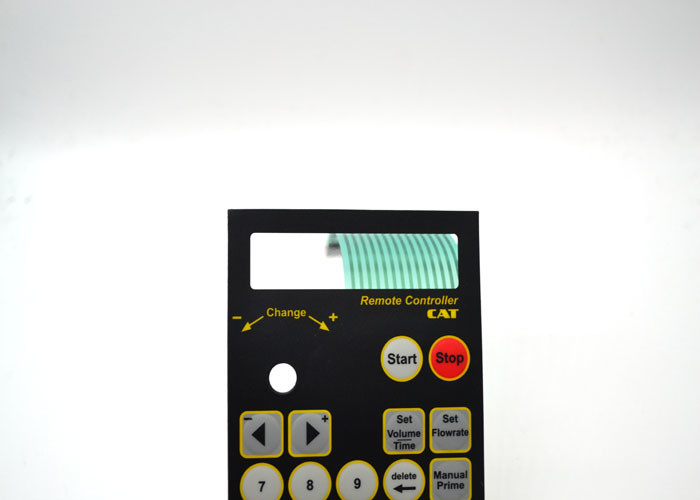

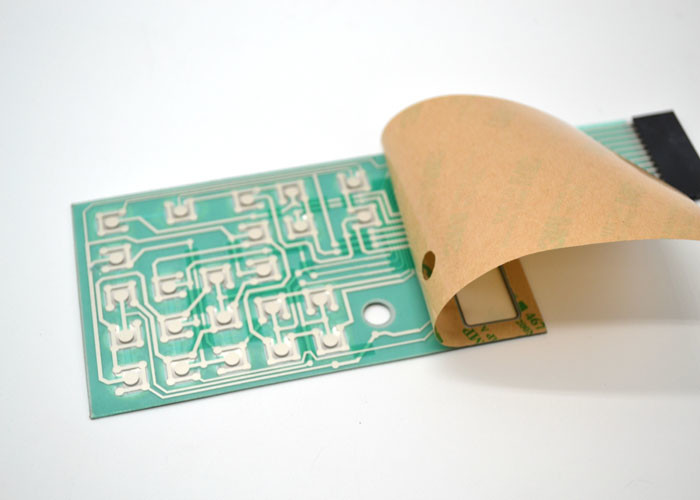

Embossed tactile metal dome membrane switch / ZS-115 / Printing 4



colors on the graphic overlay





Product Description



This is a membrane swith which designed as the customer requirement, it is produced with



sverial production processes which being strictly monified. we are a professional manufacture



for more than 13 years old. high quality of every item will be guaranteed.Color printing is



most important,our worker choose it as  color code, every item will be fine and packaged in



cartonboxes before shipment.



Electric parameters:


operating voltage:≤ 50VDC


working current:≤ 100mA


Contact resistance:0.5 ~ 5Ω


Insulation resistance:≥ 100MΩ (100VDC)


substrate voltage:2kDVC


spring time:≤ 6ms


loop resistance:20Ω


insulation ink voltage:100VDC


Physical parameters:


Active force: 0.3 to 3N


Lifespan: >1mil (non-tactile)


Hand speed: ≤5ms


Temperatures: -40 to +85°C


Humidity: 40/48hrs, 95% RH


Working altitude: 0 to 4,500m



PET Material Embossed Tactile Metal Dome Membrane Switch Anti - CorrosionPET Material Embossed Tactile Metal Dome Membrane Switch Anti - Corrosion



Application


We have the capacity to provide F150 PET Shield/ flat/ embossed push button keypad



membrane switch with translucent red LCD window, membrane switch panel with other



special requirements, such as Shielding, Windows/Lens Coating, Embossed button, Embossed



LEDs, UV glossy/matte/textured, EL,LED backlight,rubber keypad, FPC keypad, PCB keyboard



etc.



Industrial: Industrial Equipment, Vehicle Navigation, Automotive Machine, Army Command



                 System, Security System, POS



Instrument: Medical Instruments, Electric Instruments, Detecting Instruments, KIOSK,

                  Teaching Instrument, Data Acquisition System, Electrocardiograph

Office Machines: Printer, Copier, Fax Machine, Projector, Entrance Guard Machine,

                          Attendance Machine

Consumer Electronic: LCM/LCD, Computer/cell Phone, Digital Camera, Sound and Imaging

                                  Equipment, Electronic Toys, Remote Controller


PET Material Embossed Tactile Metal Dome Membrane Switch Anti - Corrosion

Packaging & Shipping



Membrane Switch Packing and Delivery Details:





1.100pcs usually putted into a poloybag,seperated by carbboard,5 bags packed into a 5-layer



   carton.



2. According to customers' requirements.





Lead Time:



1. Lead time of samples:



Inital samples: 3-5 working days for graphic overlay, 5-7 working days for membrane



switch,7-15 working days for special membrane switch including



special product.It takes 5-7 working days to recise initial sample.(depended on actural



product.)





Final lead time is for your reference only , for more information ,pls contact me. Lead time



for mass production delivery:





2. Lead time of delivery:



Mass production for reqular membrane switches 7-15 working days after receipt of



PO.​Repeat order , graphic overlay needs 5-7 working days.



Membrane switches take 10-30 working days .It takes 15-45 working days for special



material.We can ship partial shipments for big quantity orders.



Final ship date will be subject to company confirmation






Product Tags:

membrane touch switch



tactile push button switch


Buy cheap PET Material Embossed Tactile Metal Dome Membrane Switch Anti - Corrosion product
