Flat / Embossed Tactile Membrane Keypad , Push Button Membrane Switch

Brand Name : Zhongshan

Model Number : ZS-107

Certification : ROHSISO9001,2000

Place of Origin : Jiangsu(China mainland)

MOQ : 100 pieces

Price : negotiation

Payment Terms : 30% deposit, the 70% balance after shipment or full payment before air transportation

Supply Ability : 50000 pieces per week

Delivery Time : within one week after receiving order payment

Packaging Details : Seal plastic bags with carton boxes or due to customer detail requirements

Keypad Button : PET

connector : 2 male connector cable

type : metal dome membrane switch

feasure : embossed and tactile

back adhesive : 3M467MP

brand name : Zhongshan

Contact Now

Membrane switch embossed key type with tactile / ZS-107 / Two male



connector cable tail with 3M467MP back adhesive





Product Description





Membrane switch design





Material



PET(polyester),PC(polycarbonate)



Dimension



80*80mm



Color



Pantone and RALcolor matching system.



Rear Adhesive



3M467,3M468,3M9448 ect
Features



1)with metal dome,





2)Key:embossed or flat





3)screen printing





4)glossy surface or matte surface





6)Standard Tolerances:+/- 0.10inch(+/-0.25mm)





Best service + best price+best quality







Membrane Switch description





Physical Parameter



Membrane keypad --Non-tactile Membrane keypad--Tactile



Nominal actuation force



4-12 ounces 8-20 ounces



Actuation force tolerance



3 ounces 4 ounces



Rebound time



.006″ to .012″ .020″ to .030″



Switch life



10 million 10 million





Electric Parameter





Membrane keypad --Non-tactile Membrane keypad--Tactile



Contact rating



50VDC,100mA 50VDC,100mA



Contact bounce



≤20ms ≤20ms



Environment



Membrane keypad --Non-tactile Membrane keypad--Tactile



Storage Temperature



-40°C-+85°C -40°C-+85°C



Operation Temperature



-30°C-+60°C -30°C-+60°C

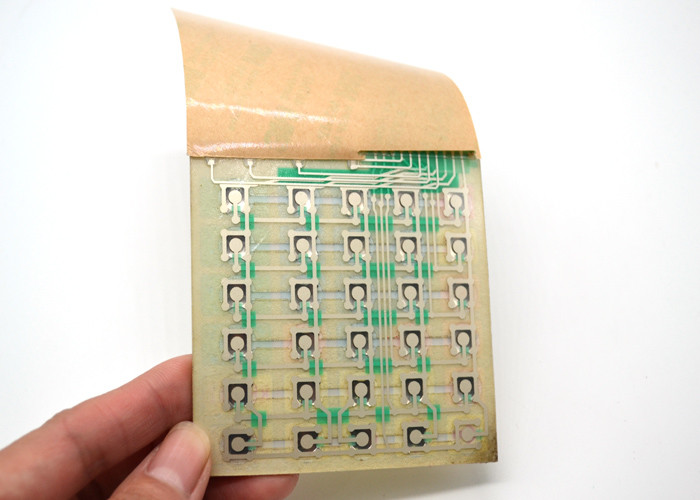

Flat / Embossed Tactile Membrane Keypad , Push Button Membrane SwitchFlat / Embossed Tactile Membrane Keypad , Push Button Membrane Switch







Our Services



1. 100% manufacturer



2. Best material selection,all our goods are made of best materials which have the SGS



    certificate from the best suppliers.



3. Quality control: every single piece of product, every production, procedure is inspected and



    controlled before packing the goods into export carton. We ensure every of product



    shipped are of good quality.



4. After sales service is necessary for more understanding for your needs. We do keep a close concern.
