Embossed Flat Keys Membrane Switch Panel , Membrane Switch Keypad

  • 1
  • 2
  • 3

Brand Name : Zhongshan

Model Number : ZS-125

Certification : ROHSISO9001,2000

Place of Origin : jiangsu(China mainland)

MOQ : 100 pieces

Price : negotiation

Payment Terms : 30% deposit, the 70% balance after shipment or full payment before air transportation

Supply Ability : 50000 pieces per week

Delivery Time : within one week after receiving order payment

Packaging Details : Seal plastic bags with carton boxes or due to customer detail requirements

appliation : medical instruments

color : blue black green and red

window : a clear display window

brand name : Zhongshan

model number : ZS-125

CURRENT CONTACT : 2-24V

Contact Now

Customized Embossed Button  Flat Keys Membrane Switch Label



Panel / ZS-125 / Application for medical instruments







Membrane panel Performance indicators:




1. Electronic characteristics




   Circuit rating: 35V (DC), 100mA, 1W




   Contact resistance: 10Ω--500Ω (According the trace length and materials to comfirm)




   Insulation resistance:> 100MΩ 250V DC




   Contact bounce: ≤ 5ms Dielectric withstand:250VRms (50-60Hz 1min)




   Life expectancy: flat type ≥ 5 million times, tactile type: ≥ 1 million times






2. Mechanical Properties





   Actuation force:flat type 57-284g (2-10 Oz), tactile type 170-397g





   (6-14 Oz) Switch stroke: flat type 0.1-0.5mm, tactile type 0.6-1.5mm




3. Environmental parameters




    Operating Temperature: -40 oC- +80oC , Storage temperature: -40oC - +85oC




    Humidity: 40oC , 90% -95%, 240 hours







Membrane Panel Primary Competitive Advantages:




1. Prompt Delivery.




2. Quality Control (IQC, On line Inspection, OQC, ISO9001 and 5S).




3. Reputation.




4. Service.




5. Small Orders Accepted.




6. Superior R&D Background (continuously new product development and current product





   (improvement).




7. Customize Design / Production (OEM/ODM business and flexible designs for customers'





   special requirements).

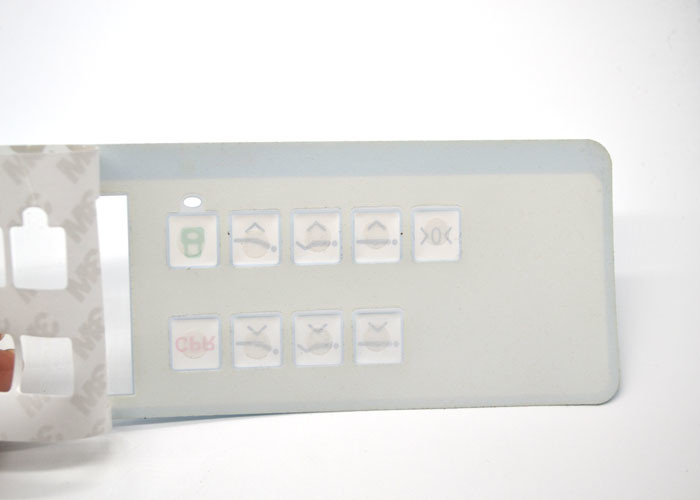

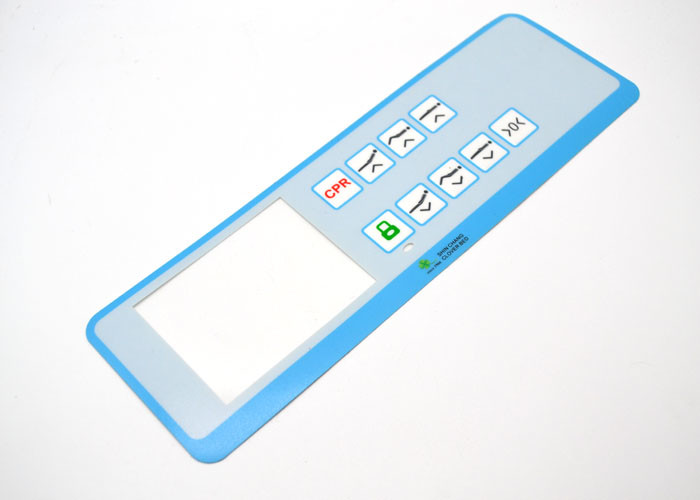

Embossed Flat Keys Membrane Switch Panel , Membrane Switch Keypad



Embossed Flat Keys Membrane Switch Panel , Membrane Switch Keypad





Why Choose Us?





1. High reliable in function with low cost





2. 100% function test before shipment, SGS report is available.





3. Two factories to support mass production





4. Rich and professional manufacturing experience





5. Professional service team





6. Capacity to produce with special requirement,custom is available.
